Basic Info
Model No.: CGE-10S
Product Description
1.We are professional manufacture of various generator set with 18 years
experiences such as Gas Generator Set ,Diesel Generator Set,duel fuel generator set.
Power range from 10KW to 1100KW.
2.Our generator set suit for natural gas,biogas,LPG gas and mine gas as fuel.
3.Not only use the Gas Generator set for power generation,we also can make use of
engine emissions for heating and cooling called CHP(Combined Heating and Power)
or CCHP(Combined Cooling Heating and Power),The integrated thermal efficiency
is no less than 85%.
4.Our gas generator set are widely used in the community ,hotel,rural area,gas field,
coal mine,chemical companies,distillery,fermentation plant,landfill,sewage plant .
5.We have exported to Russia,Japan,Thailand,Bangladesh,South America,Africa and so on.
1.what is the 10KW biogas generator ?
Our biogas generator can drive the power up to 10KW or 12.5KVA.
Phase Arrangement | 3P4W | |||||||
Excitation Methode | Brushless | |||||||
Rated Power | 10KW | |||||||
Rated Current | 18A | |||||||
Rated Voltage | 400/230V | |||||||
Rated Frequence | 50/60HZ | |||||||
Rated Power Factor | 0.8(Lag) | |||||||
Voltage Regulation | AVR(Automatic Voltage Regulation) | |||||||
Technical for 10KW Gas Engine | ||||||||
Model | CR485Q1 | |||||||
BorexStroke | 85X90mm | |||||||
Cylinder | 4 | |||||||
Displacement | 2.04L | |||||||
Rated Power | 14KW | |||||||
Rated Speed | 1500/1800rpm | |||||||
Speed Regulation | Electronic Governor | |||||||
Starting Modes | Electronic Governor | |||||||
Gas Consumption | 0.3(Natural gas) /0.55(biogas)m3/kwh | |||||||
Size (mm)LXWXH | 1450× 700× 1100mm | |||||||
Weight(kg) | 700kg |

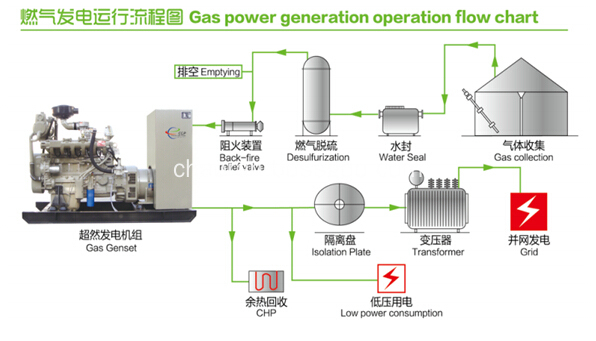

2.Biogas generator operating flow chart:

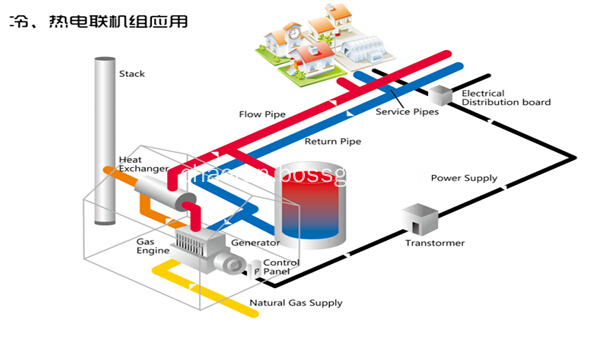

3.We can take full use of the retreat heat from the generator's exhaust pipe by our designed CHP system:

Why Choose us?
1.Weifang Chaoran Generating Works has his own plant since 1994.
2.We have a professional engineer team and ability to design and
manufacture as per every cumstomer's requirements.
3.Superior after service.
Contact us if you need more details on Biogas Generator 10KW. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Silent Biogas Generator、Soundproof Biogas Generator. If these products fail to match your need, please contact us and we would like to provide relevant information.
