farm use 60kw high-efficiency biogas generator set

Product Description


We are professional manufacture of various generator set with 18 years

experiences such as Gas Generator Set ,Diesel Generator Set,duel fuel generator set.

Power range from 10KW to 1100KW.




Advantages of generator:


1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.


2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.


3) Several gensets can be parallel connection or parallel net, which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.


4) Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .


5) Self-contained parts of gensets needs few accessories


6) Economical and low-cost running.


7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.


8) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.









Technical for 60KW Gas Generator Set
Phase Arrangement 3P4W
Excitation Methode Brushless
Rated Power 60KW
Rated Current 108A
Rated Voltage 400/230V
Rated Frequence 50/60HZ
Rated Power Factor 0.8(Lag)
Voltage Regulation AVR(Automatic Voltage Regulation)
Technical for 60KW Gas Engine
Model CR6105Q
BorexStroke 105X125mm
Cylinder 6
Displacement 5,5L
Rated Power 60KW
Rated Speed 1500/1800rpm
Speed Regulation Electronic Governor
Starting Modes Electronic Governor
Gas Consumption 0.6(biogas)m3/kwh
Size (mm)LXWXH 2200× 800× 1400mm
Weight(kg) 1990kg

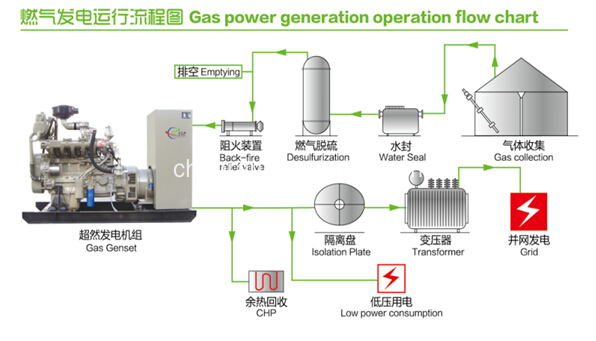

2.Biogas generator operating flow chart:





3.farm biogas project:















Why Choose us?


1.Weifang Chaoran Generating Works has his own plant since 1994.

2.We have a professional engineer team and ability to design and

manufacture as per every cumstomer's requirements.

3.Superior after service.


iso & ce
